MIG/MAG seadmed

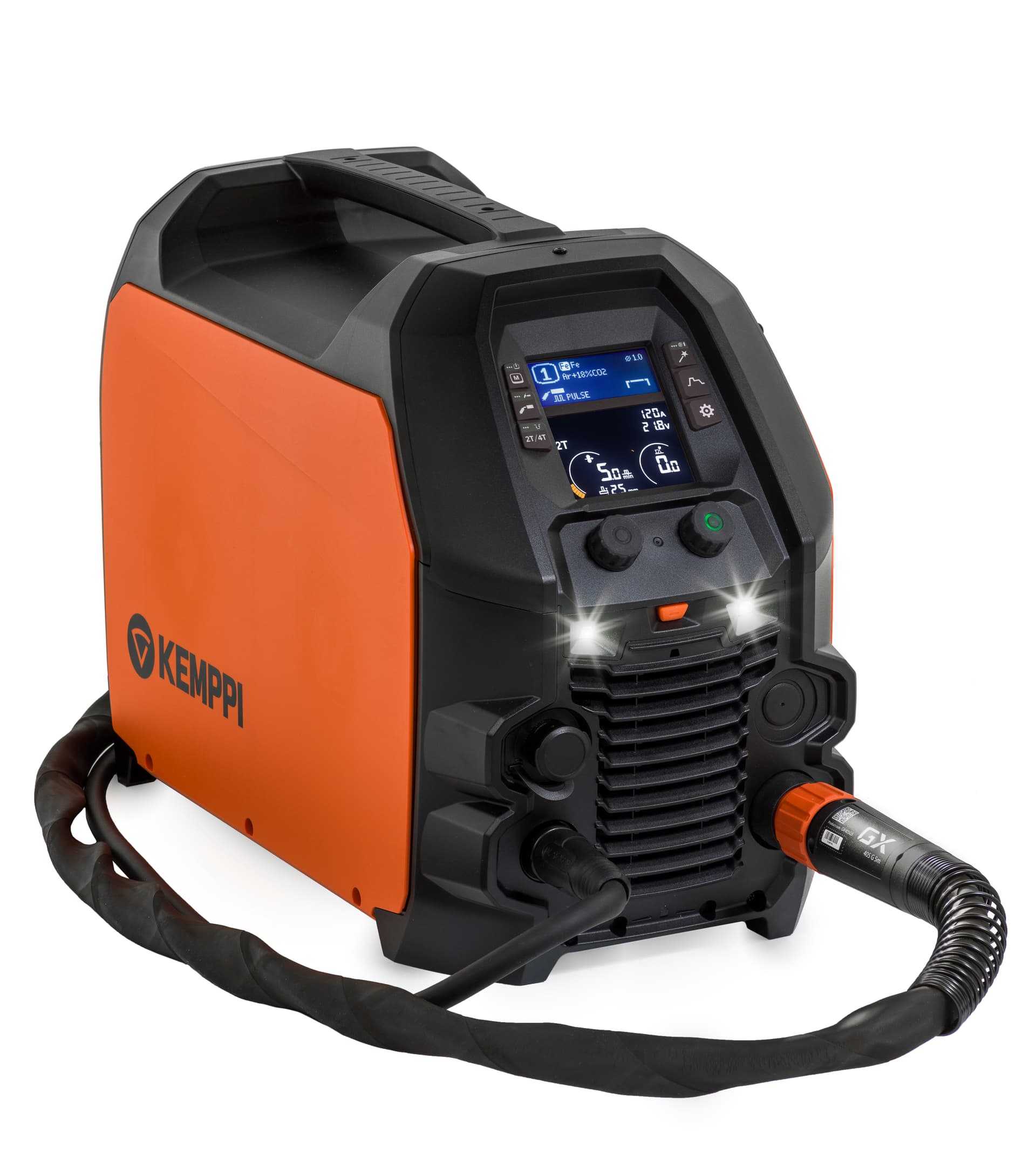

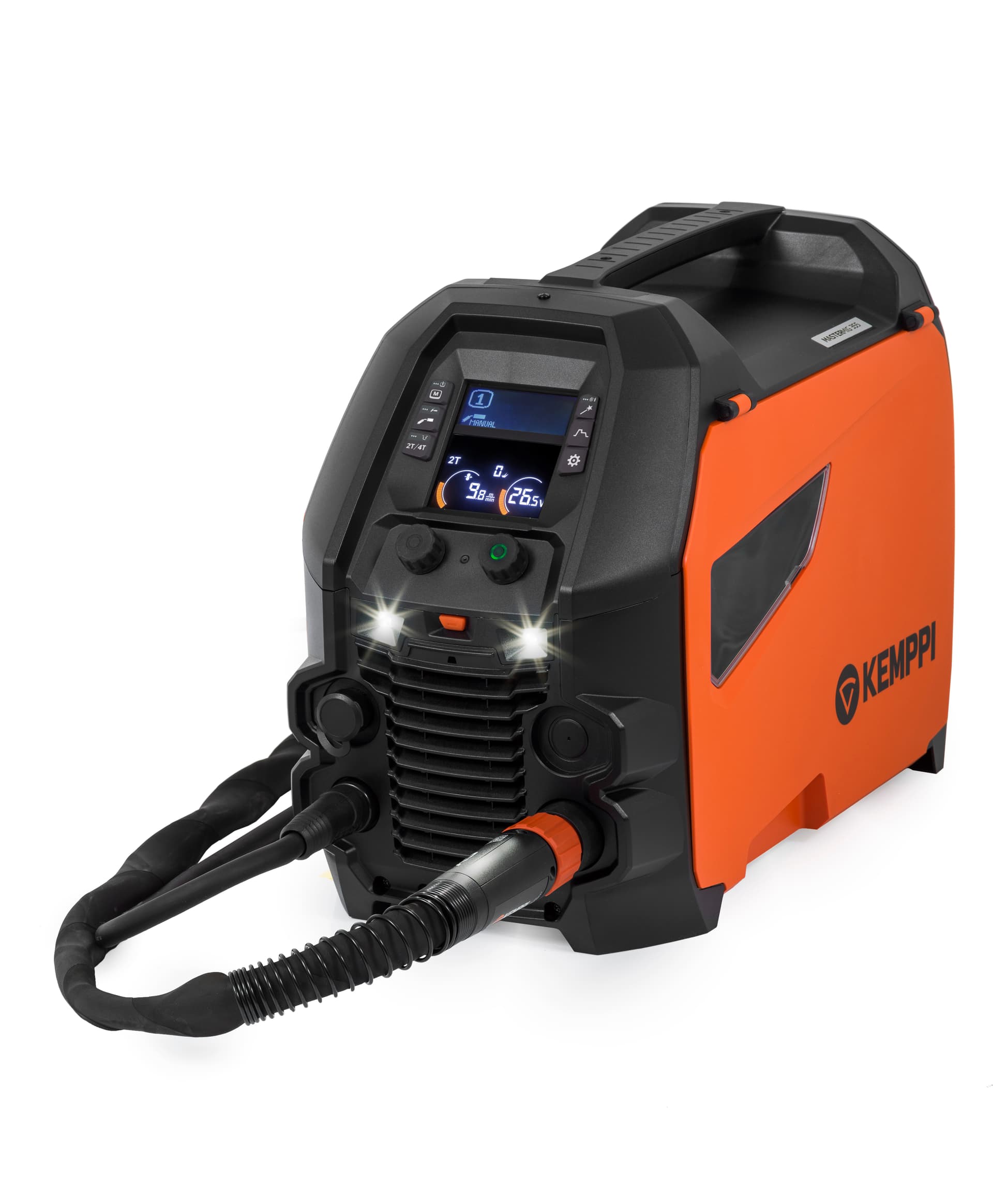

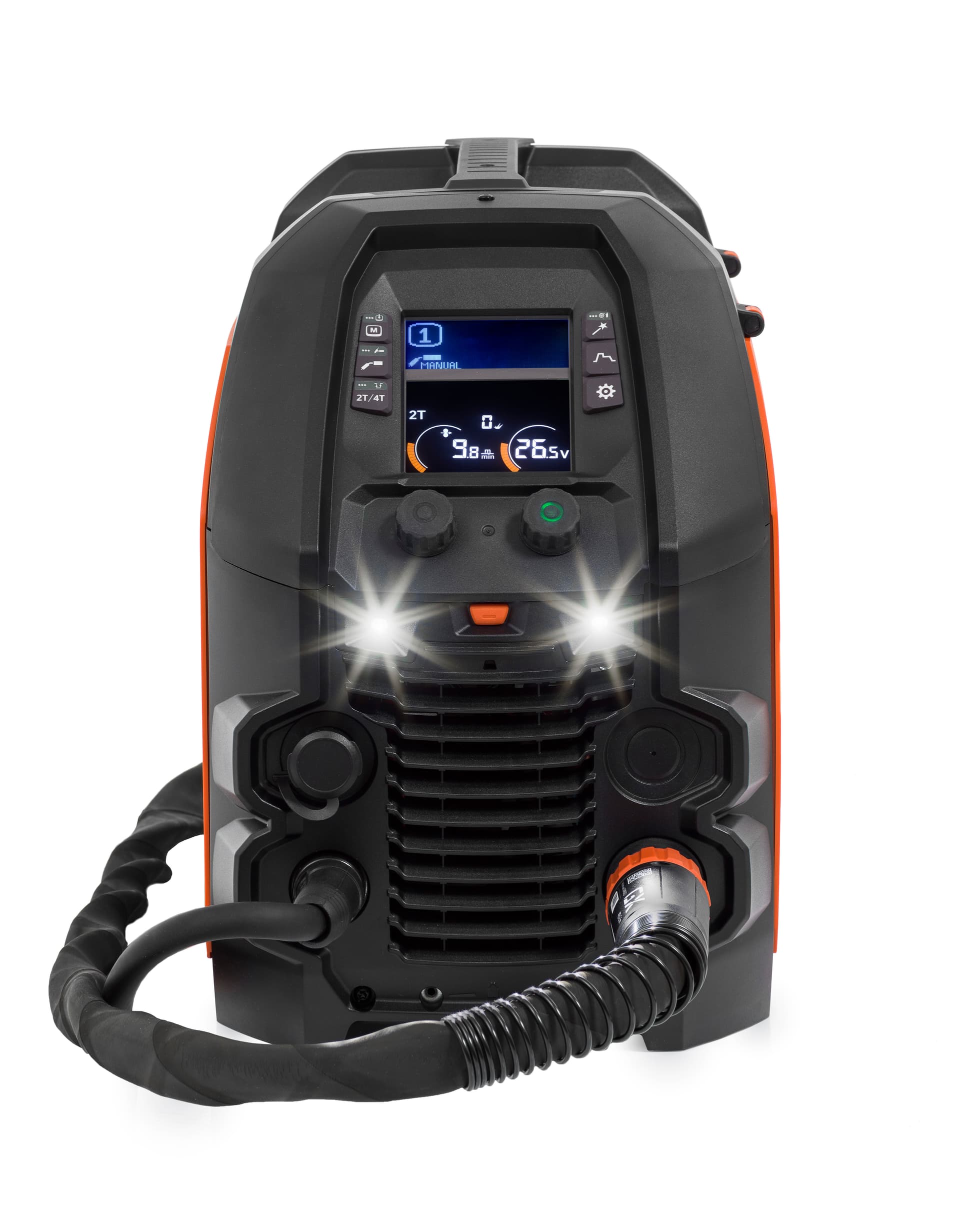

Master M 353G Synergic vedelikjahutusega komplekt koos GXe 305W 5m käpaga
Hetkel otsas• SKU: P504CGXe3
9306.52 €
7505.26 € km-ta
Kiire tarne
Garantii
Tehniline tugi
Tarne: 5-10 tööpäeva
Tasuta tarne alates 100€
Video
Suurem kogus või projekt? Küsi pakkumist või helista +372 6 835 235.
| Effective supply current | 13.3 ... 10.8 A |
|---|---|
| External dimensions without extras | 602 x 298 x 447 mm |
| Mains connection phases | 3~50/60 Hz |
| Mains connection voltage | 380...460 V ±10 % |
| Mains connection voltage (MV low range) | 220...230 V ±10 % |
| Maximum supply current | 21.1 ... 17.1 A |

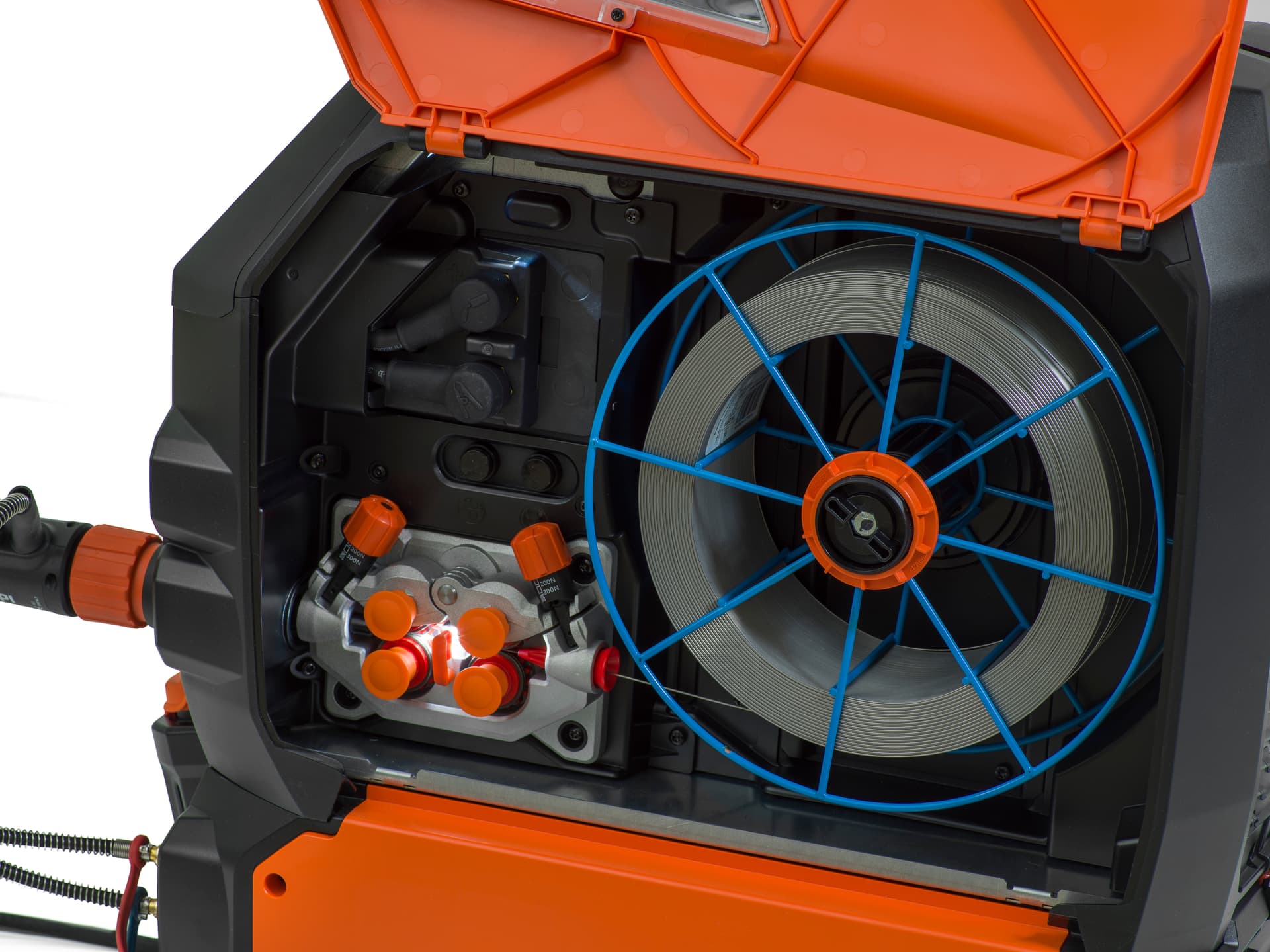

| Maximum wire spool diameter | 300 mm |
| Maximum wire spool weight | 20 kg |
| Output at +40 °C, 100% MIG | 220 A |
| Output at +40 °C, 100% MIG (@MV low range) | 190 A |
| Output at +40 °C, 60% MIG | 280 A |
| Output at +40 °C, 60% MIG (@MV low range) | 240 A |
| Output at +40 °C, rated max current, MIG | 350 A |
| Output at +40 °C, rated max current, MIG (@MV low range) | 300 A |
| Output range, MIG | 15 A / 10 V ... 350 A / 45 V |
| Output range, MIG (@MV low range) | 15 A / 10 V ... 300 A / 40 V |
| Output range, MMA | 15 A / 10 V ... 330 A / 45 V |
| Output range, MMA (@MV low range) | 15 A / 10 V ... 280 A / 40 V |
| Output range, TIG | 15 A / 1 V ... 350 A / 45 V |
| Output range, TIG (@MV low range) | 15 A / 1 V ... 300 A / 40 V |
| Output, duty cycle % at rated max. current, MIG | 40 % |
| Rated maximum input power | 14 kVA |
| Recommended minimum generator power | 20 kVA |
| VRD voltage | 24 V |
| Voltage adjustment range, MIG | 10 ... 40 V |
| Voltage supply for auxiliary devices | 12 V |
| Voltage supply for cooling unit | 24 V, 380...460 V |
| Voltage supply for cooling unit (MV low range) | 220...230 V, 24 V |
| Weight without extras | 27 kg |
| Wire feed speed | 0.5 ... 25 m/min |
