Elektroodkeevitus (MMA)

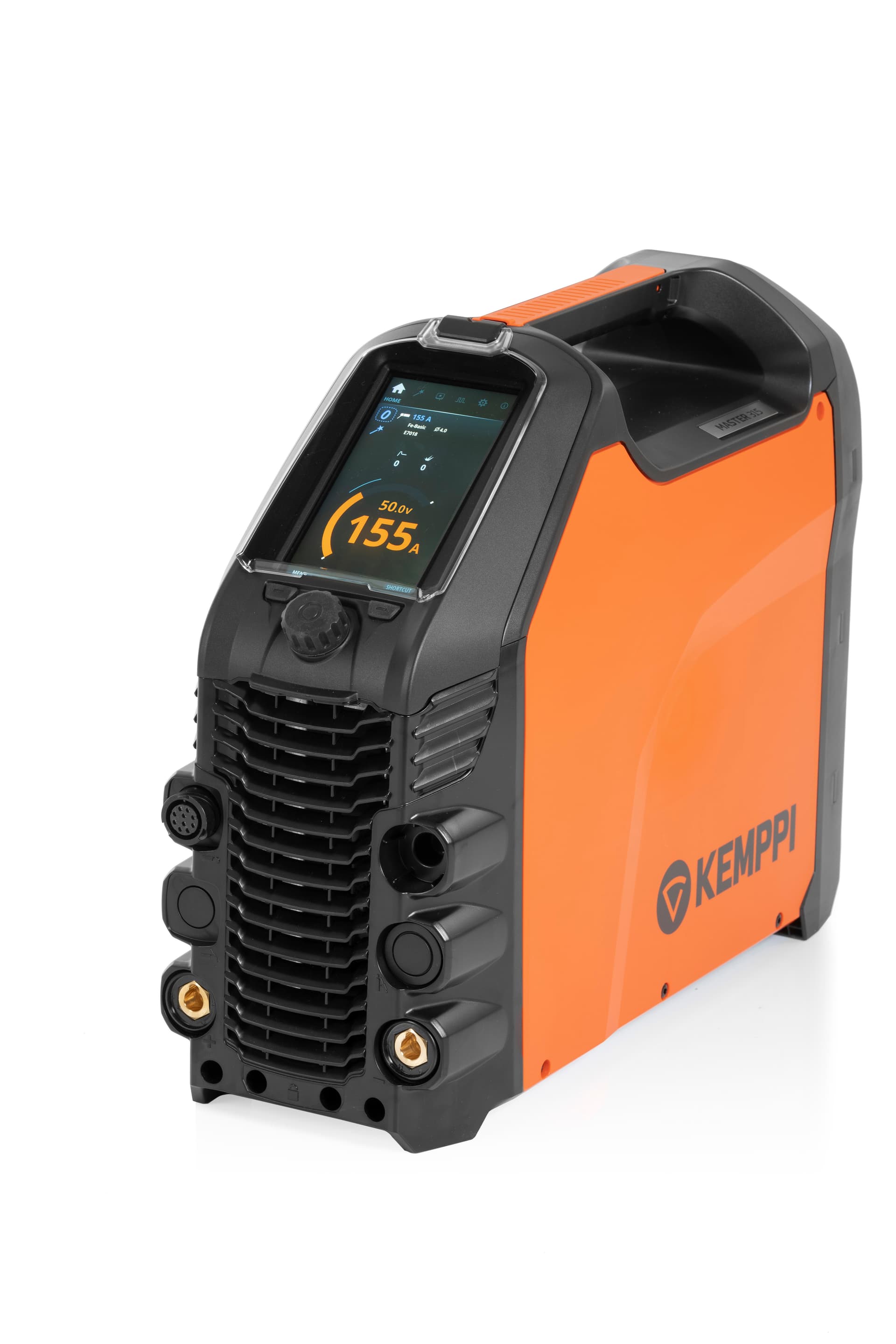

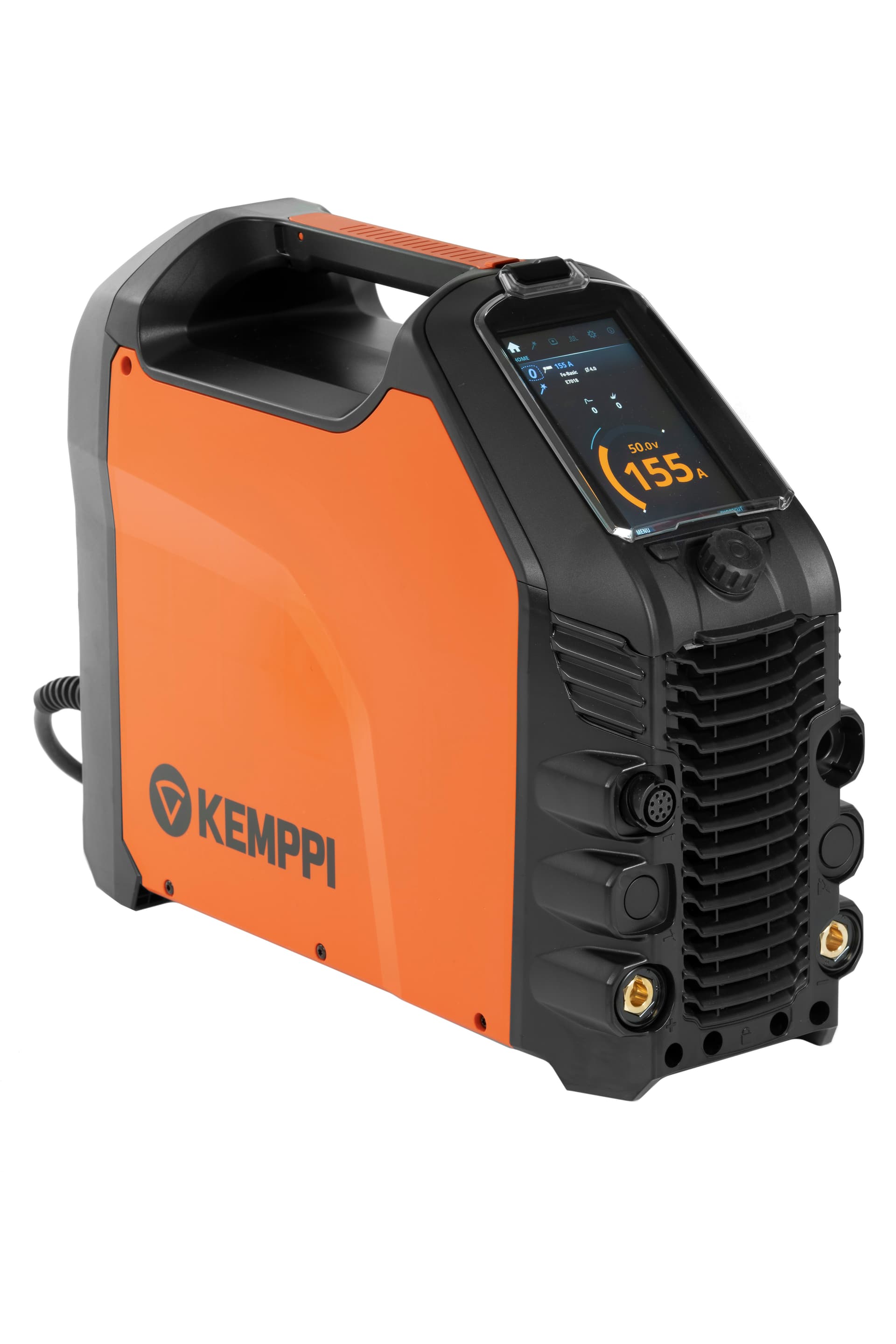

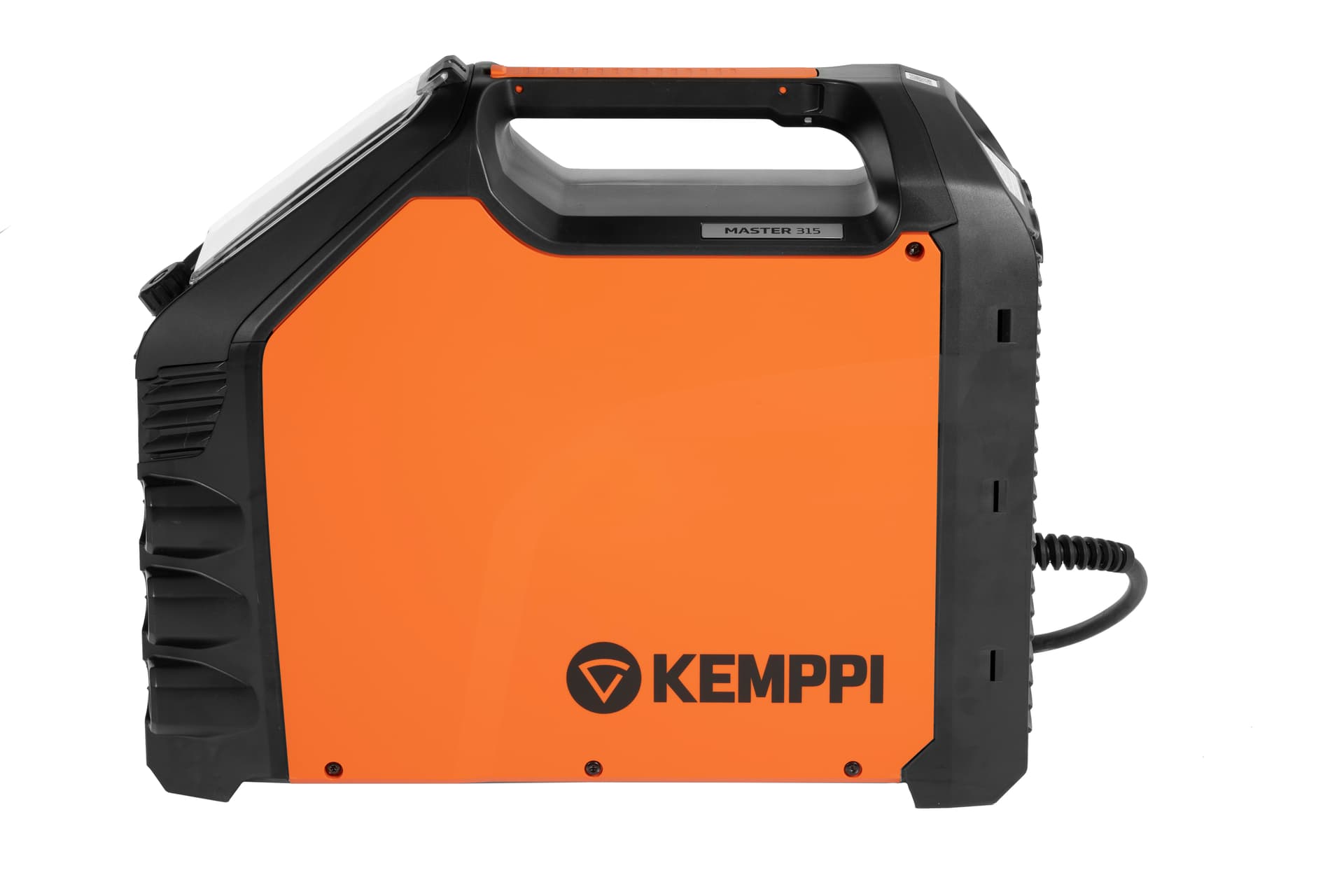

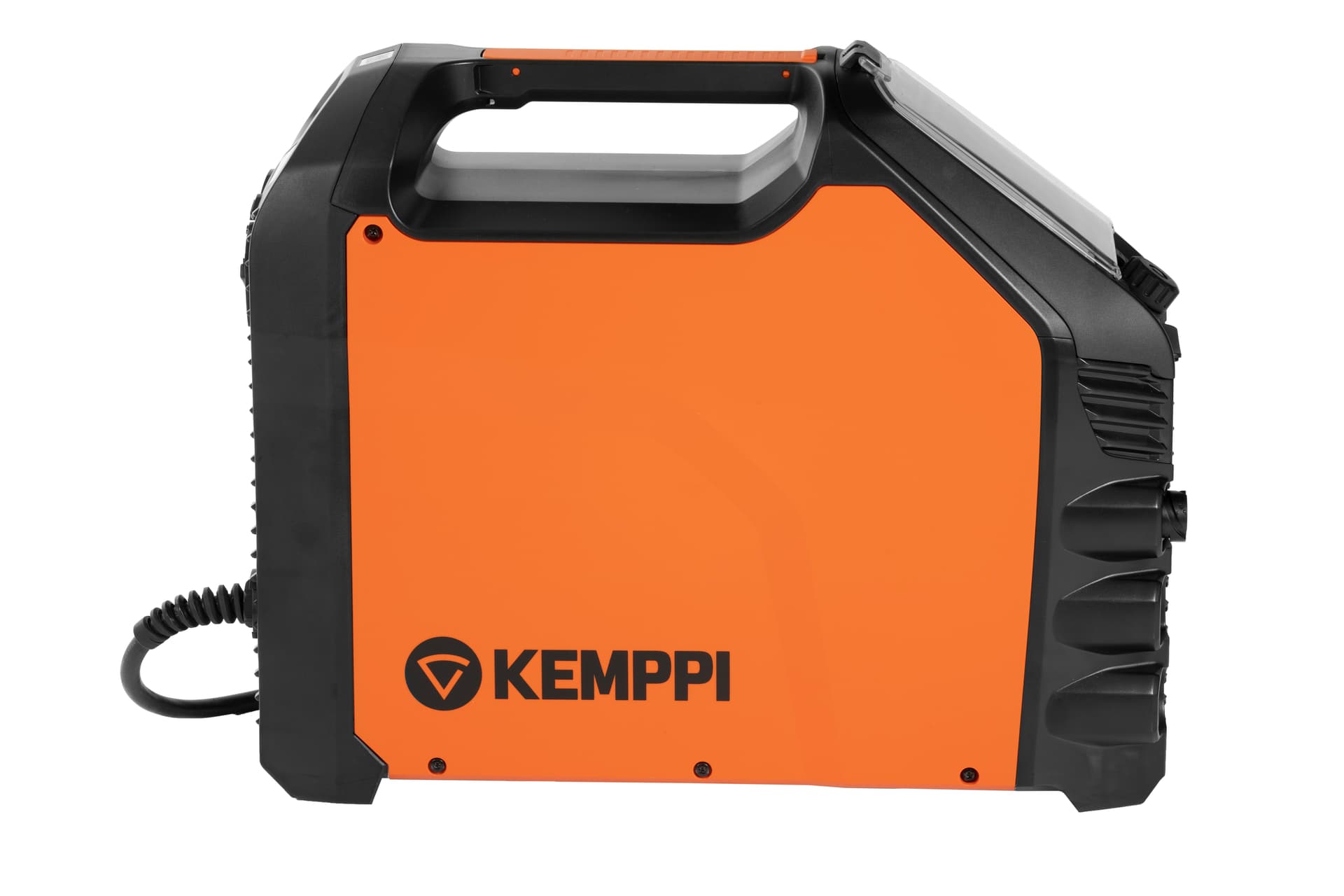

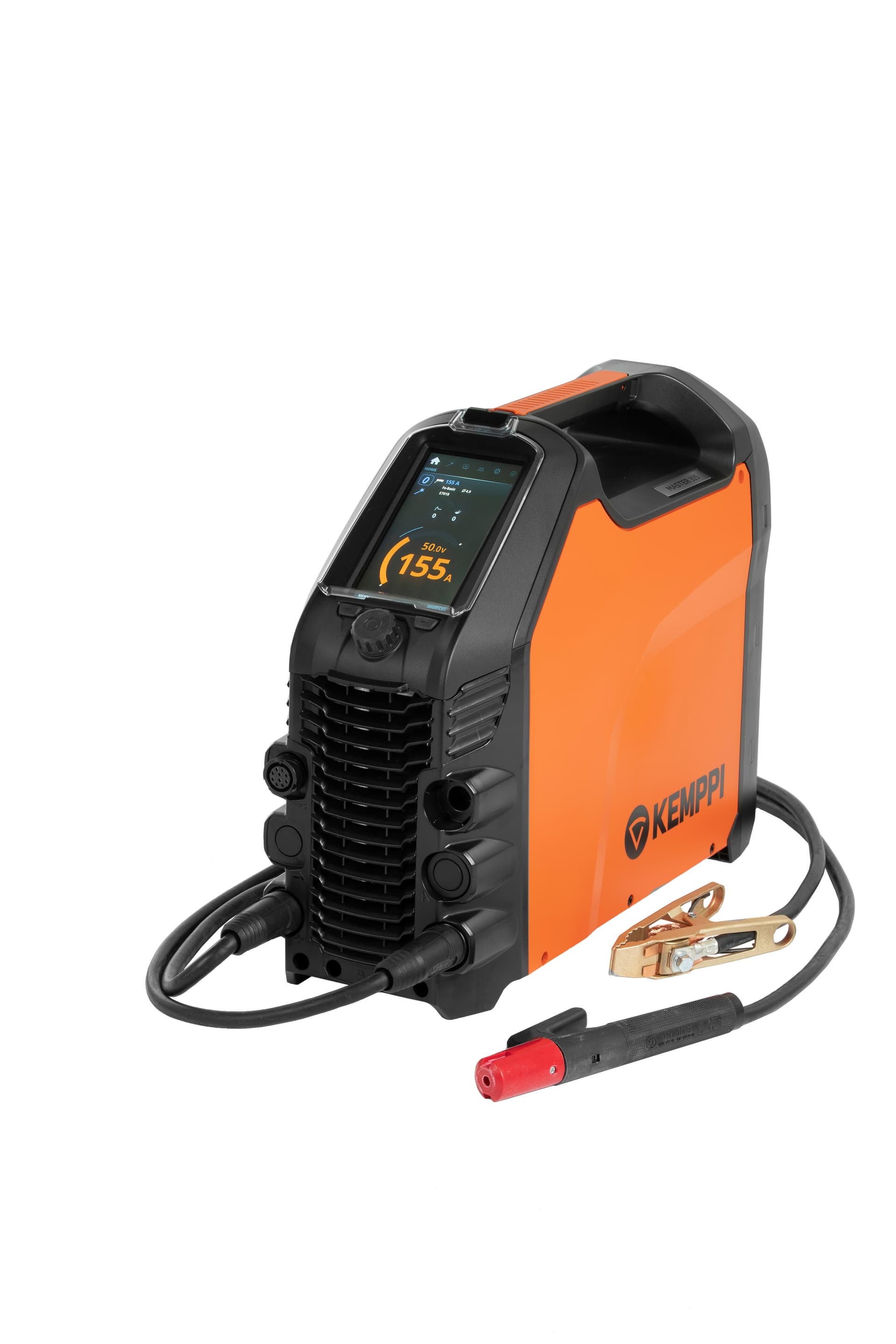

MASTER S 305 G
Hetkel otsas• SKU: MSS305G
5739.74 €
4628.82 € km-ta
Kiire tarne
Garantii
Tehniline tugi
Tarne: 5-10 tööpäeva
Tasuta tarne alates 100€
Suurem kogus või projekt? Küsi pakkumist või helista +372 6 835 235.
| Effective supply current | 12 ... 10 A |
|---|---|
| External dimensions without extras | 544 x 205 x 443 mm |
| Mains connection phases | 3~50/60 Hz |
| Mains connection voltage | 380 ... 460 V ±10 % |
| Maximum supply current | 18 ... 15 A |
| Output at +40 °C, 100% MMA | 220 A |
| Output at +40 °C, 100% TIG | 220 A |
| Output at +40 °C, 60% MMA | 260 A |
| Output at +40 °C, 60% TIG | 260 A |
| Output range, MMA | 10 A / 10 V ... 300 A / 63 V |
| Output range, TIG | 3 A / 1 V ... 300 A / 22 V |
| Output, duty cycle % at rated max current, MMA | 30 % |
| Output, duty cycle % at rated max current, TIG | 30 % |
| Rated maximum input power | 12 kVA |
| Recommended minimum generator power | 20 kVA |
| Weight without extras | 21,4 kg |
