TIG keevitus

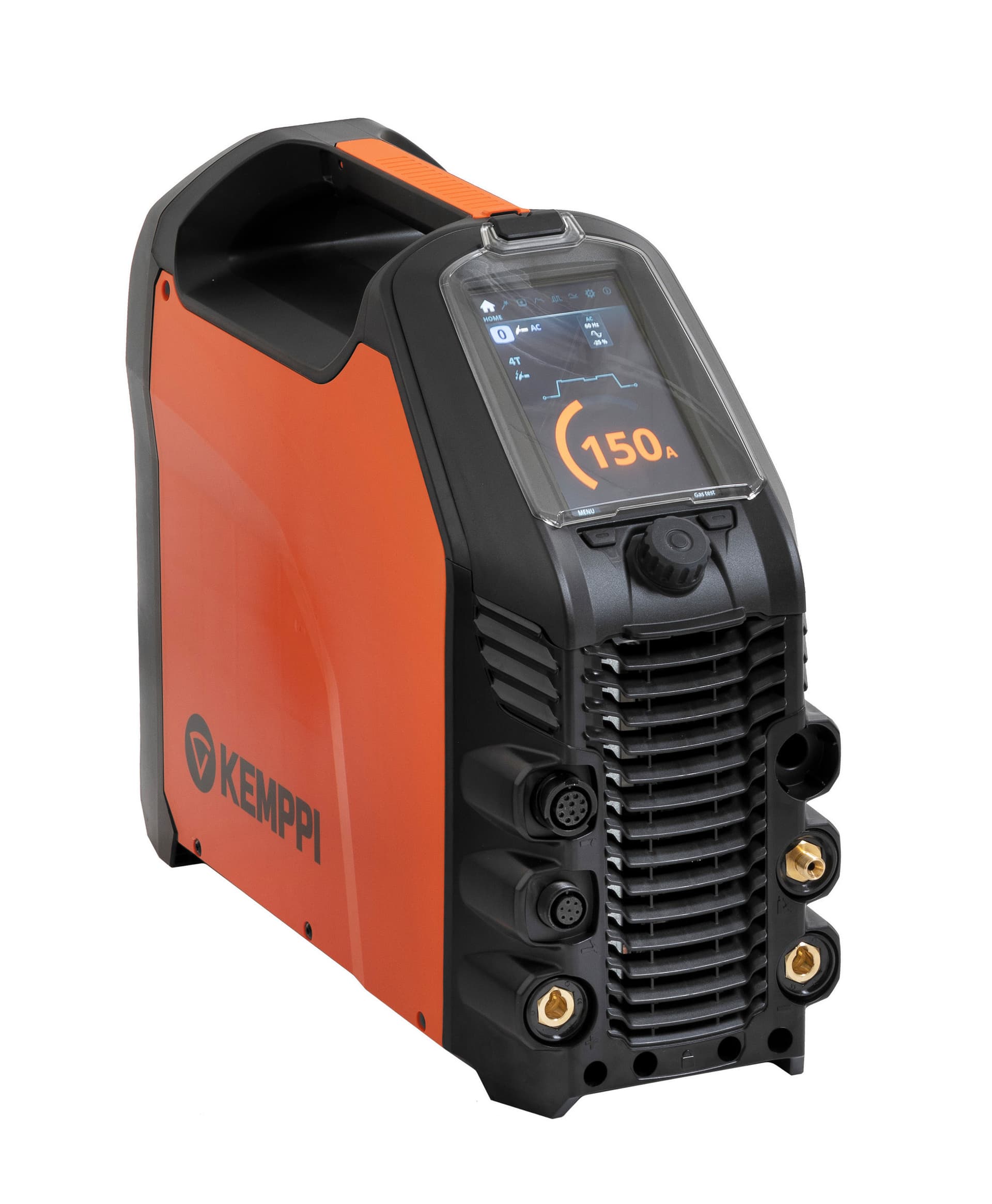

MASTER T 355 DC gaasijahutusega komplekt koos 8m käpaga
Hetkel otsas• SKU: MST355DC
6214.15 €
5011.41 € km-ta
Kiire tarne
Garantii
Tehniline tugi
Tarne: 5-10 tööpäeva
Tasuta tarne alates 100€
Suurem kogus või projekt? Küsi pakkumist või helista +372 6 835 235.
350A-30%
190A-100%
190A-100%
| Effective supply current | 11 ... 10 A |
|---|---|
| External dimensions without extras | 544 x 205 x 443 mm |
| Mains connection phases | 3~50/60 Hz |
| Mains connection voltage | 380 ... 460 V ±10 % |
| Maximum supply current | 17 ... 14 A |
| Output at +40 °C, 100% MMA | 190 A |
| Output at +40 °C, 100% TIG | 190 A |
| Output at +40 °C, 60% MMA | 230 A |
| Output at +40 °C, 60% TIG | 230 A |
| Output range, MMA | 10 A / 10 V ... 270 A / 39 V |
| Output range, TIG | 5 A / 1 V ... 350 A / 38 V |
| Output, duty cycle % at rated max. current, MMA | 35 % |
| Output, duty cycle % at rated max. current, TIG | 30 % |
| Rated maximum input power | 12 kVA |
| Recommended minimum generator power | 20 kVA |
| Weight without extras | 21 kg |
